Description
The STP1000/LD70/NT50 machine combination is a solution offered by Thermotron for folding and stacking readymade garments. It is ideal for companies seeking a folding and stacking solution for the garments they produce, that would only require one operator. This production line can stack quickly, quietly and accurately 5,500 garments in 8 hours and is capable of handling a wide variety of different garments.
Functions of the complete production line
- STP1000 Folding garments
- LD70 Attaching printed labels on folded garments .

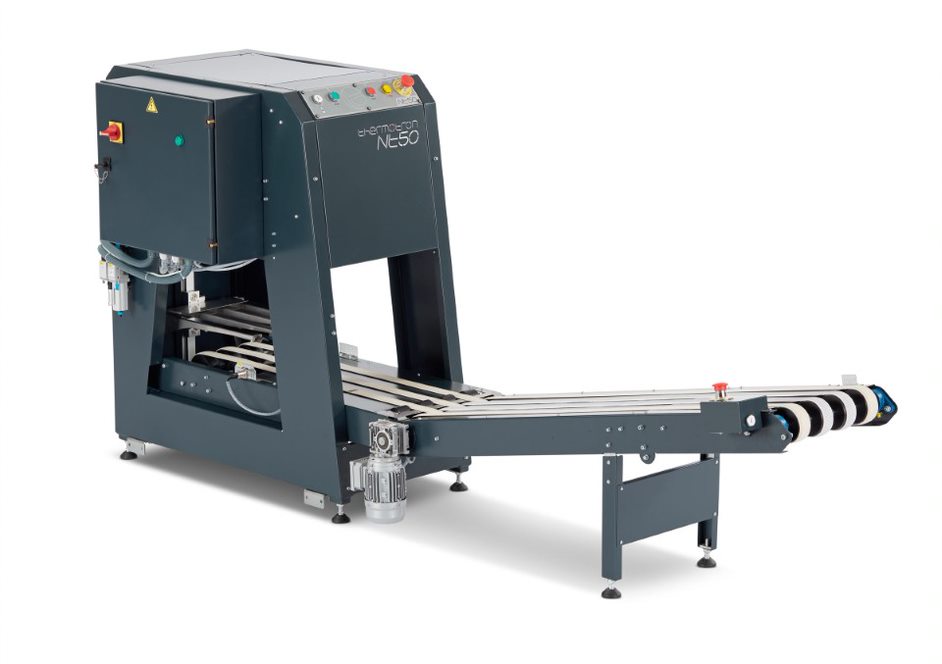

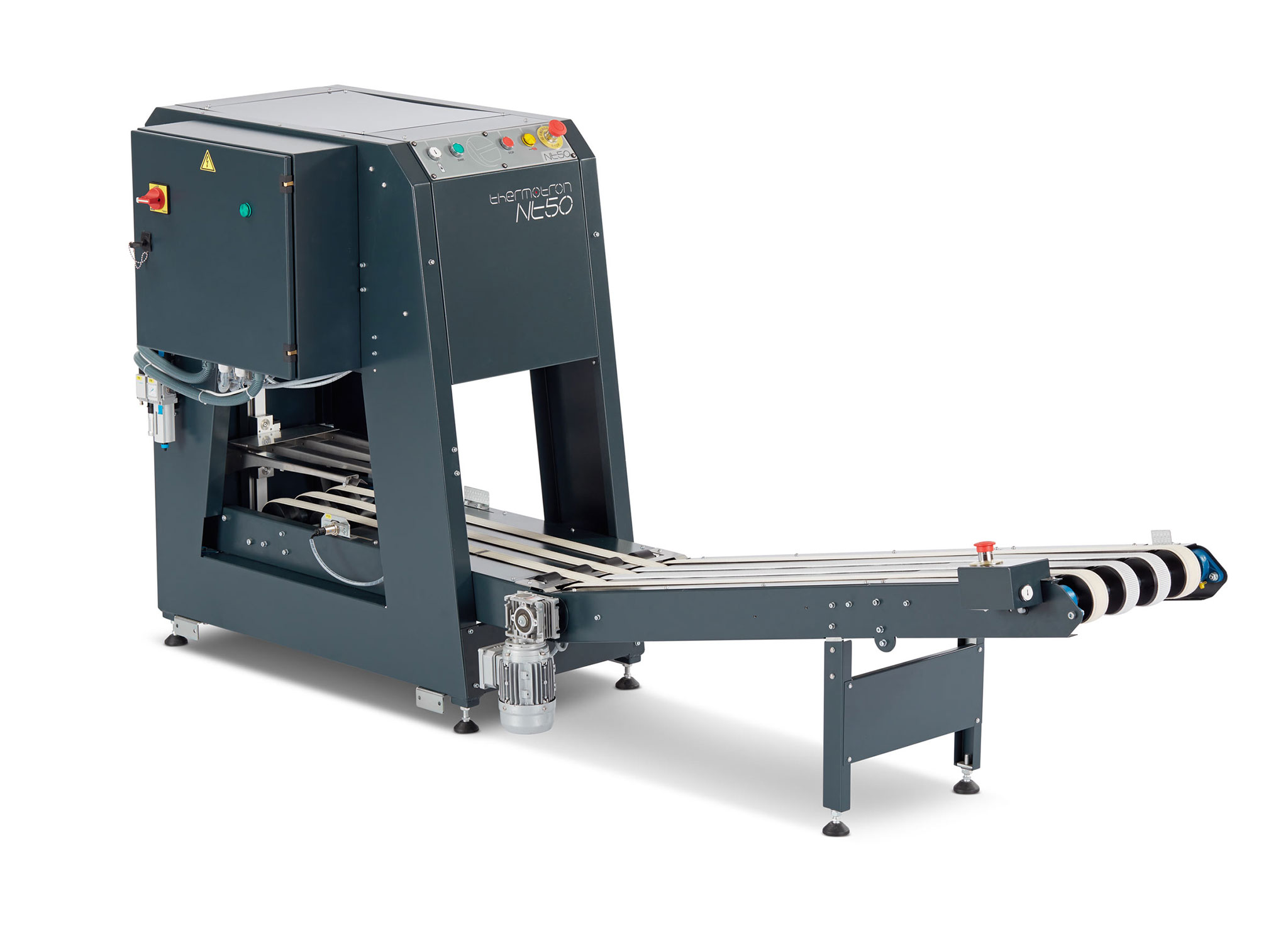

- NT50 Stacking folded garments and transporting the stack to the sorting area via a conveyor belt.
Technical specifications
| Maximum Production | 5,500 clothes per 8h |
|---|---|
| Dimensions L*W*H | 658.5*139*124cm |
| Net weight | 685Kg |
| Power supply | 210-400V AC 50-60Hz |
| Power | 2,16Kw |
| Air pressure | 6bar |
| Average air consumption | 212 L/min |
| Operator | 1 Person |
| STP1000 | Maximum clothes dimensions (L&W): 100cm & 80cm (Pants L = 120m) |
| LD70 | Maximum garment thickness: 10cm |
| Label Material Characteristics (LD70) | Label lifespan: Labels preserve their characteristics for 12 months if the necessary storage conditions are met. |
| NT50 | Maximum height of garment stack: 35cm |
Brochures
Brochures
Production line brochure
STP100 Dimensional production line brochure
LD70 Dimensional production line brochure
NT50 Dimensional production line brochure
Label Technical Specifications PDF
Compliance with International Standards
Compliance with International Standards
CE Certificate
EU Directives
2006/42/EC Machinery Directive (MD)
2014/30/EU Electromagnetic compatibility (EMC)
Harmonized Standards
EN ISO 12100:2010 Safety of machinery – General principles for design – Risk assessment and risk reduction
EN ISO 14119:2013 Safety of machinery – Interlocking devices associated with guards – Principles for design and selection
EN ISO 14120:2015 Safety of machinery – Guards – General requirements for the design and construction of fixed and movable guards
EN ISO 4414:2010 Pneumatic fluid power – General rules and safety requirements for systems and their components
EN 60204-1:2018 Safety of machinery – Electrical equipment of machines – Part 1: General requirements
Warranty
Warranty
The STP1000/LD70/NT50 machine combination has a 12-month warranty from the date of purchase. The machines composing the production line come with operating manuals, wiring diagrams and numbered lists of spare parts for each machine.
Our company guarantees the performance of the machine and shall repair or replace any faulty components that show manufacturing defects within the 12-month warranty period. The cost of the repair work and spare parts is borne by the manufacturer.
This warranty is not valid in the following cases:
- The machine was not used according to its intended purpose.
- Damages were caused by accident, fall or improper operation.
- An attempt to repair the machine was made by the user or any third party.
- A part or a spare part of the machine was modified for any reason.
- The machine was not connected, used or maintained in accordance with the operating manual instructions.
- Consumables or spare parts were used other than the ones originally included in the machine.
Transport
Transport
Dimensions of wooden crate per machine (L*W*H cm).
- STP1000: 293*140*157cm
- LD70: 178*110*154cm
- NT50: 92*144*142cm
Gross weight per machine & total.
- STP1000: 550Kg
- LD70: 335Kg
- NT50: 210Kg
- Total gross weight: 685Kg
Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56οC for a minimum of 30 minutes, on the entire mass of the wood.)
Let us know about the closest port of delivery, to offer you a CIF quote.
