Description
The TH44/BC41M machine combination is a solution offered by Thermotron for packing readymade garments. It is ideal for companies seeking a packing solution for the garments they produce, that would only require one operator. This production line can pack quickly, quietly and accurately 5,500 garments in 8 hours or more, depending on the speed of the operator who is feeding the folded garments. The production line is capable of handling a wide variety of different garments.
Functions of the production line

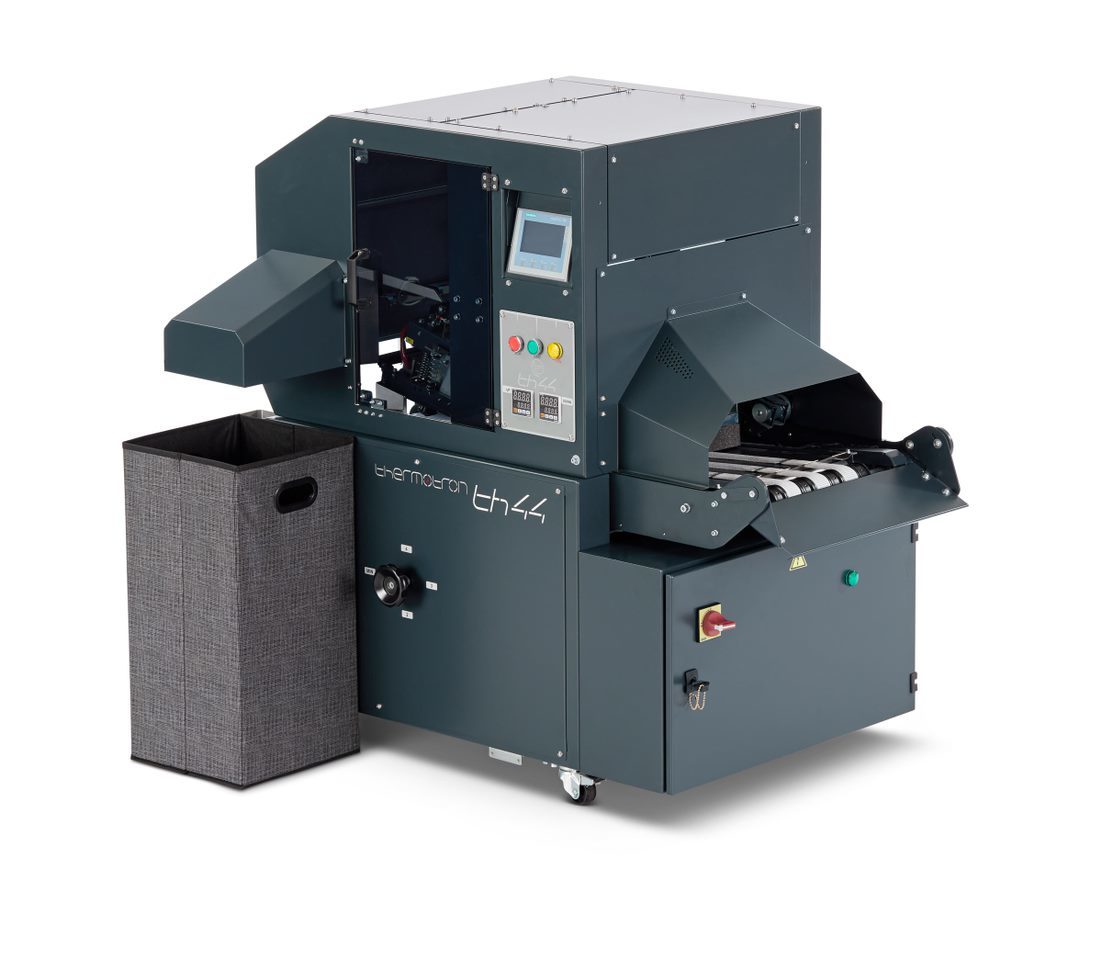

- TH44 Heat sealing the plastic bags containing the garments
- BC41M Printing and attaching barcode stickers onto the sealed plastic bags and transporting the bagged products to the sorting area via a conveyor belt.
Technical specifications
| Maximum output | 6,000 clothes per 8h |
|---|---|
| Dimensions L*W*H | 350*119*108cm |
| Net weight | 390Kg |
| Power supply | 210-400V AC 50-60Hz |
| Power | 1,68Kw |
| Air pressure | 6bar |
| Air consumption | 115L/min |
| Operator | 1 Person |
| TH44 | Width of bag: 16-38cm |
| BC41M | Print method: Thermic & Thermal transfer |
| Types Linear (BC41M) | Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, GS1-DatabarTM, GS1-128(UCC/EAN128), Interleaved 2/5, Industrial 2/5, JAN8/13, Matrix 2/5, MS1, Bookland, PostnetTM, UPC-A/E, |
| Types 2D (BC41M) | PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code and Composite Symbologies |
| Barcode Reading Test (BC41M) | Supported Barcode types by default: 2/5 INTERLEAVED, Code 39, Codabar, Code 128, EAN 128, All EAN/UPC |
Compliance with International Standards
Compliance with International Standards
CE Certificate
EU Directives
2006/42/EC Machinery Directive (MD)
2014/30/EU Electromagnetic compatibility (EMC)
Harmonized Standards
EN ISO 12100:2010 o Safety of machinery – General principles for design – Risk assessment and risk reduction
EN ISO 14119:2013 o Safety of machinery – Interlocking devices associated with guards – Principles for design and selection
EN ISO 14120:2015 Safety of machinery – Guards – General requirements for the design and construction of fixed and movable guards
EN ISO 4414:2010 Pneumatic fluid power – General rules and safety requirements for systems and their components
EN 60204-1:2018 Safety of machinery – Electrical equipment of machines – Part 1: General requirements
Warranty
Warranty
The TH44/BC41M machine combination has a 12-month warranty from the date of purchase. The machines composing the production line come with operating manuals, wiring diagrams and numbered lists of spare parts for each machine.
Our company guarantees the performance of the production line and shall repair or replace any faulty components or manufacturing defects within the 12-month warranty period. The cost of the repair work and spare parts is borne by the manufacturer.
This warranty is not valid in the following cases:
- The production line was not used according to its intended purpose.
- Damages were caused by accident, fall or improper operation.
- An attempt to repair the line was made by the user or any third party.
- A part or spare part was modified for any reason.
- The line was not connected, used or maintained in accordance with the operating manual instructions.
- Consumables or spare parts were used other than the ones originally included in the machine and referenced in the machine manuals.
Transport
Transport
Dimensions of wooden crate per machine (L*W*H cm)
- TH44: 153*105*155cm
- BC41M: 108*166*152cm
Gross weight per machine
- TH44: 310Kg
- BC41M: 275Kg
- Total gross weight: 530Kg
Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56οC for a minimum of 30 minutes, on the entire mass of the wood.)
Let us know about the closest port of delivery, to offer you a CIF quote.
